Dynamic Thickening Unit for Biological Sludge

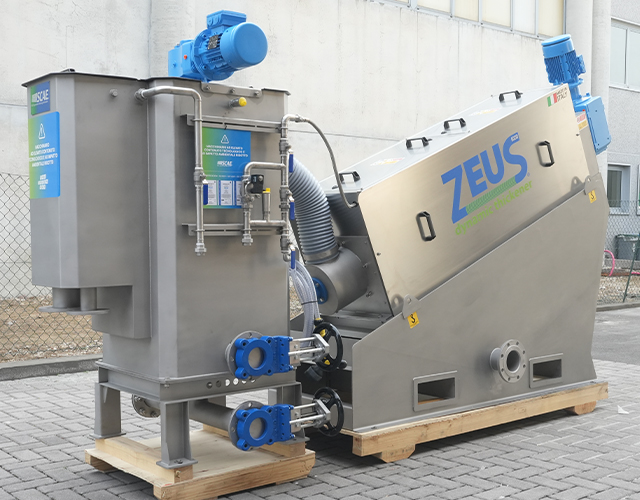

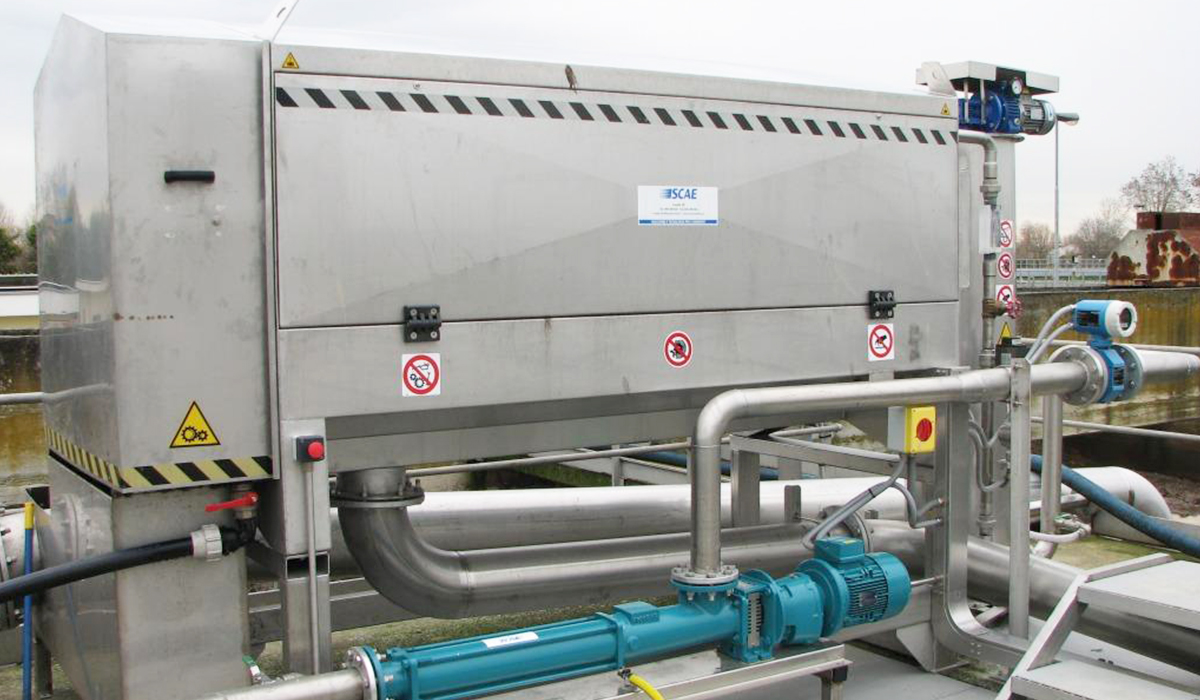

ZEUS Dynamic Thickener is a compact, monoblock package for the dynamic thickening of sludge in municipal and industrial wastewater treatment plants. By adjusting the polyelectrolyte dosage and the flocculation process, it achieves controlled thickening that can be adapted to the characteristics of the sludge being treated.
ispessitore dinamico fanghi impianti di depurazione
The ZEUS ID Screw Press is a compact and efficient solution for regulating the volume of sludge to be handled and transported, optimizing operating costs and contributing to a more sustainable wastewater treatment process.
ZEUS Dynamic Thickener is a compact, automated solution for sludge thickening, designed to achieve the desired concentration level through flexible management of the main process parameters.
402ID ÷ 808ID
The ZEUS ID screw press uses disc-thickening technology, designed to progressively separate the liquid phase from the sludge through the combined movement of screw augers and discs.

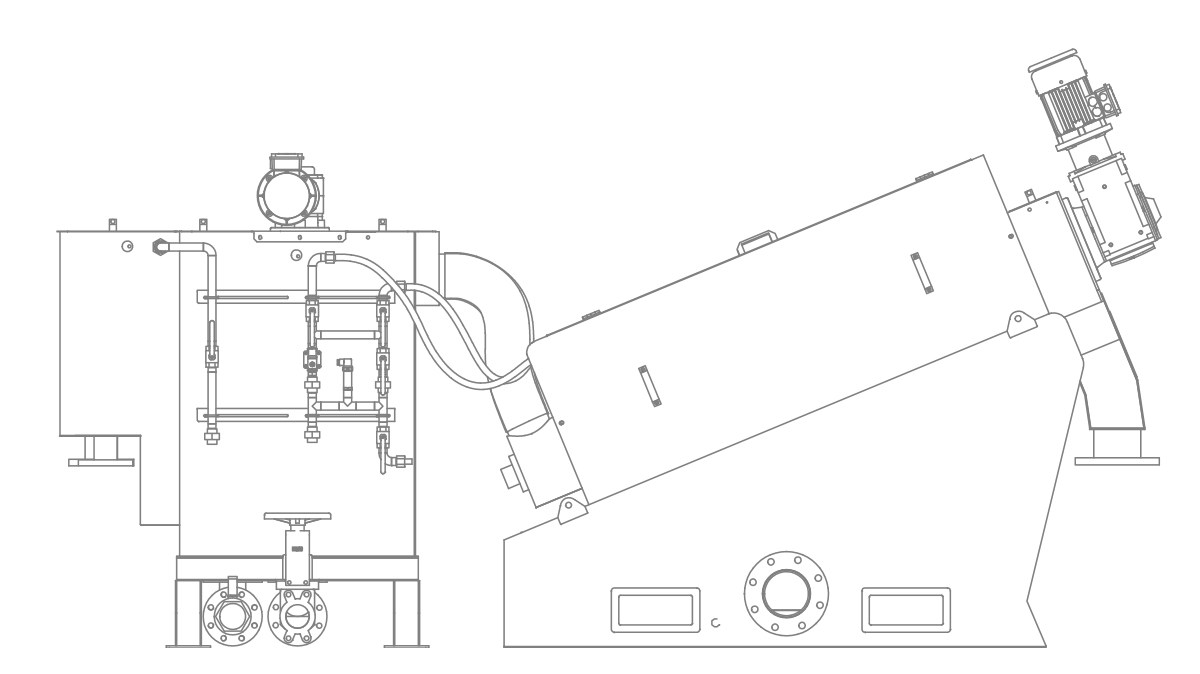

Descrizione

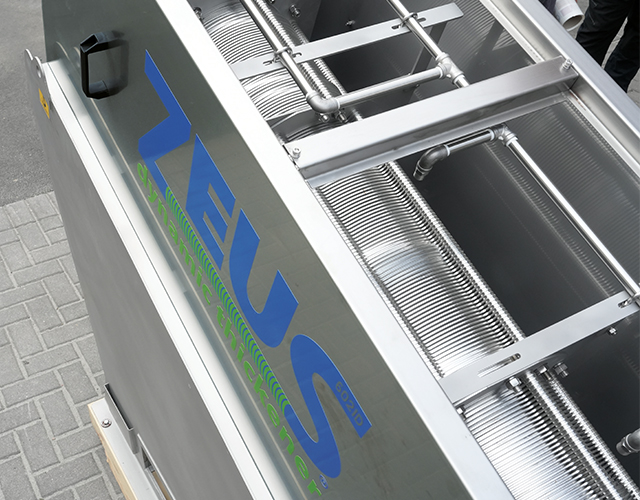

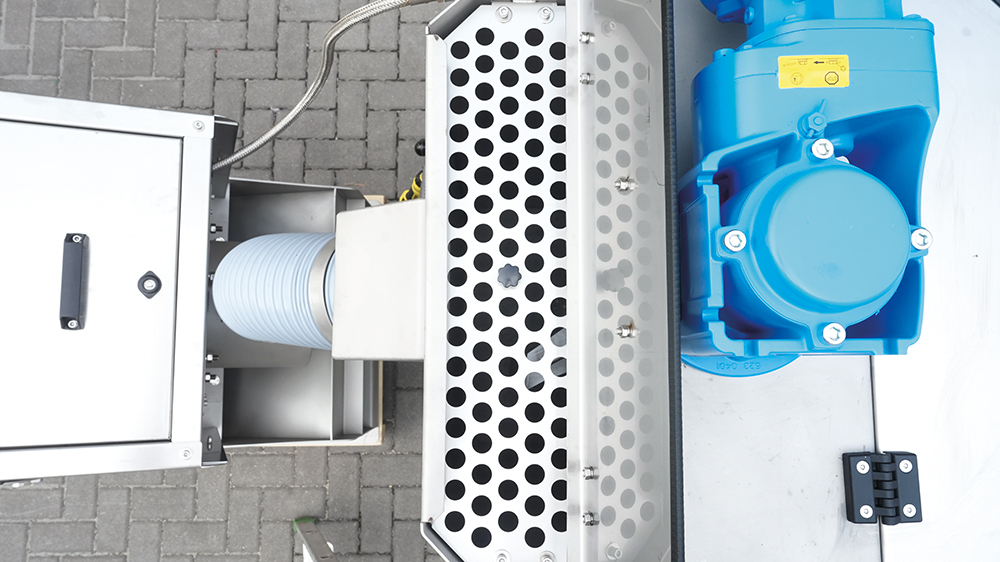

The main section of the ZEUS Dynamic Thickener consists of one or more screw augers (up to 4), available in different diameters depending on the machine size (200, 300, 350 and 400 mm). Each auger runs inside a channel made up of alternating fixed and moving discs.
The sludge is first conditioned in the reactor cylinder integrated into the machine, where it is mixed with polyelectrolyte and flocs are formed. It is then fed into the thickening section, where the screw auger progressively drains the water.
Water is separated through the gaps between the fixed and moving discs, while their relative movement keeps the surfaces clean and limits the risk of clogging.
OPERATION
The thickening process takes place in several stages:
01. Conditioning
The sludge is fed into the reactor cylinder and mixed with the polyelectrolyte solution.
02. Pre-thickening
The honeycomb assembly, consisting of a column of discs with adjustable gaps, provides an initial pre-thickening stage inside the reactor.
03. Thickening
The sludge enters the machine’s main section, where the screw auger conveys it forward and progressively separates the water.
04. Adjustment
The thickening level is managed by adjusting various process parameters, adapting machine operation to the plant’s requirements.
ADVANTAGES
- Compact design with a small footprint
- No risk of clogging thanks to the relative movement of the discs.
- No backwash water required thanks to the self-cleaning disc system.
- N. 4 degrees of freedom for controlling the thickening level.

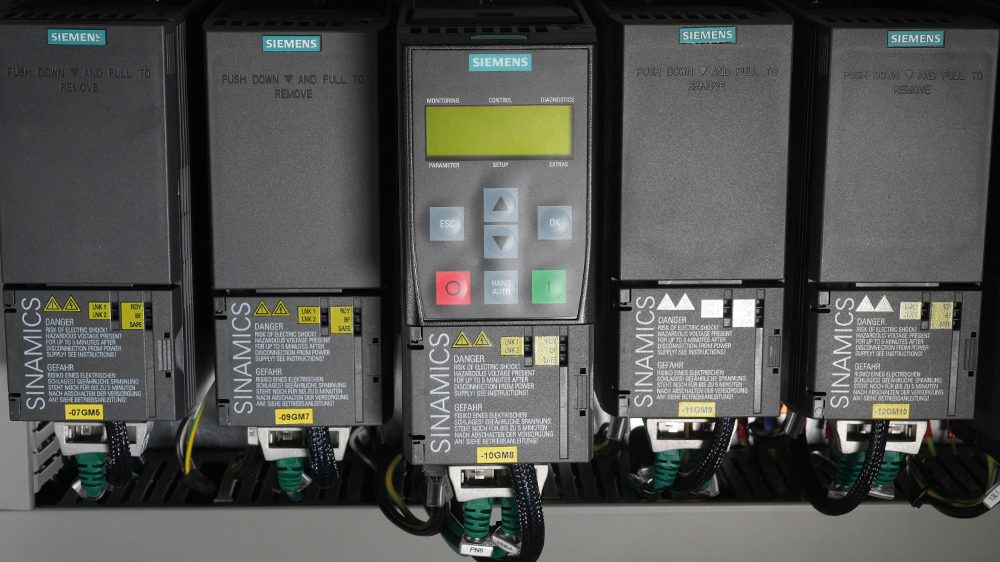

- High level of automation with an electrical control panel for the thickening section (optional: control of the thickened sludge transfer pump via inverter).
- Pre-thickening is integrated directly into the reactor cylinder by means of a dedicated device known as the “honeycomb” (a column of discs with adjustable gaps), enabling optimal operation even with very low inlet sludge concentrations.
- No separate sludge/polyelectrolyte mixer is required thanks to the integrated reactor.
GESTIONE DEL GRADO DI ISPESSIMENTO
ZEUS Dynamic Thickener allows the thickening level to be adjusted using four main process parameters:

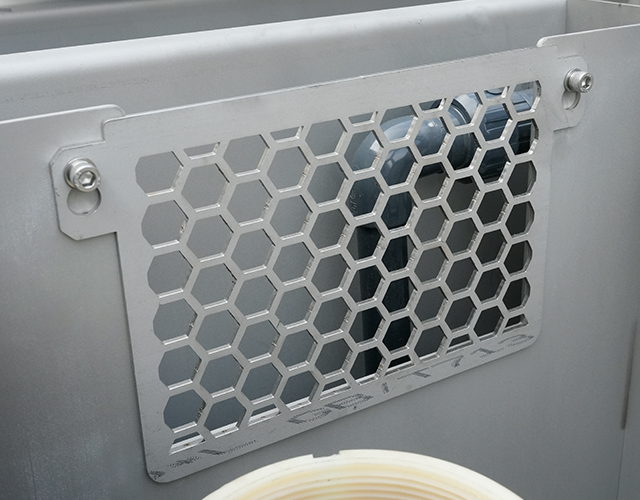

HONEYCOMB OPENING
Adjusting the disc gaps in the reactor cylinder makes it possible to control the pre-thickening stage
SCREW AUGER SPEED
The screw auger feed speed determines the retention time and helps control the thickening process
BACKPRESSURE PLATE
Adjusting the plate opening makes it possible to regulate the backpressure inside the machine
DOSAGE AND FLOCCULATION
Polyelectrolyte dosage and the degree of flocculation complete the process adjustment
This combination of parameters makes it possible to adapt machine operation to the type and characteristics of the sludge being treated. The achievable thickening level depends on the sludge type and quality, process conditions and machine settings, using a suitable polyelectrolyte.
Estimated average polyelectrolyte consumption: 2-4 kg/t TSS
Adjustable thickening range: 3% → 12% *
(*) indicative value based on operating plants, test campaigns, sludge type and quality (SVI, SSV/TSS, etc.), and the specific requirements of the process.

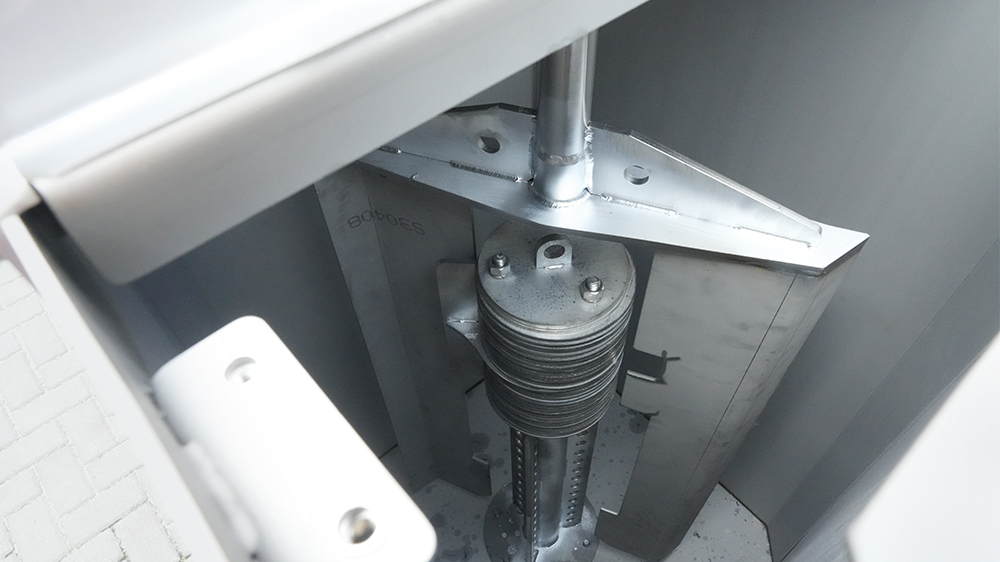

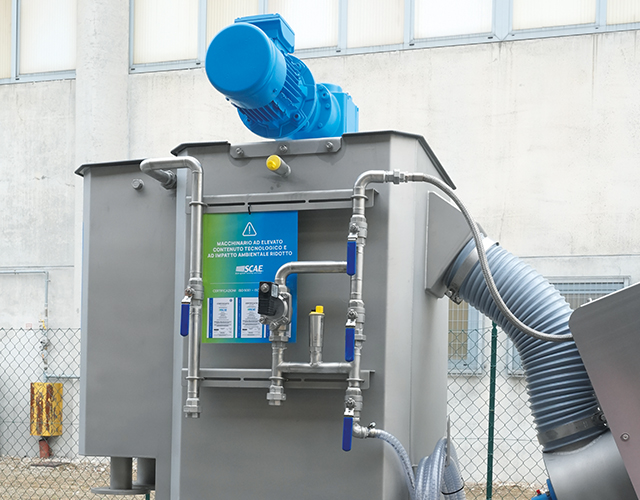

INTEGRATED FLOCCULATION REACTOR
One of the distinctive features of the ZEUS Dynamic Thickener is its integrated reactor cylinder, designed to mix the sludge directly with the polyelectrolyte solution.

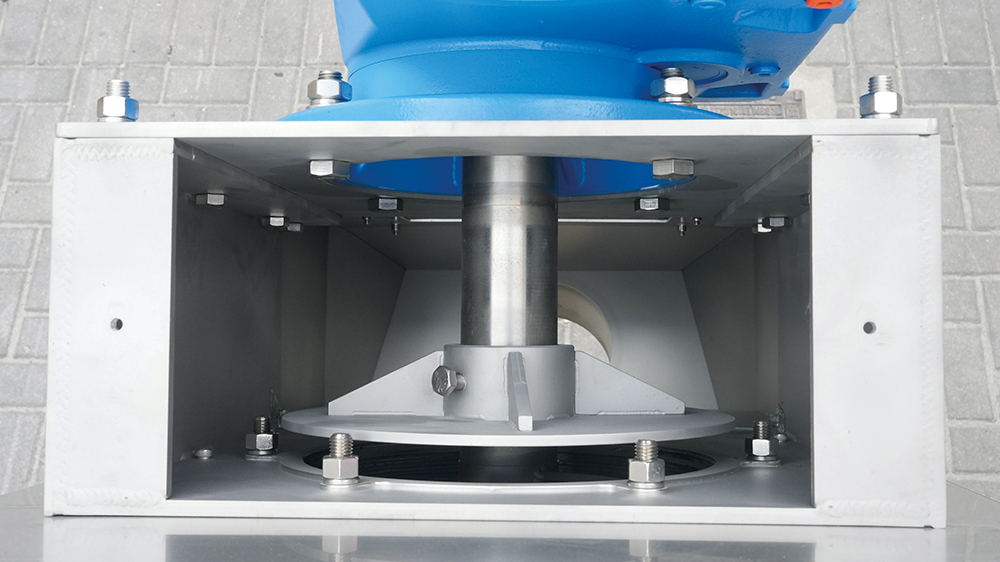

The reactor is equipped with an agitator with inverter-controlled variable speed and specially designed blades to promote mixing and floc formation. Thanks to the integrated reactor, a dynamic mixer is not required, eliminating the need for a separate mixing system.
Inside the reactor cylinder is a special device called the “honeycomb”, consisting of a column of discs with adjustable gaps. It provides an initial pre-thickening stage inside the reactor, allowing the process to be controlled before the sludge enters the main thickening section. This configuration enables the machine to operate effectively even when inlet sludge concentrations are particularly low.
VISUAL FLOCCULATION MONITORING

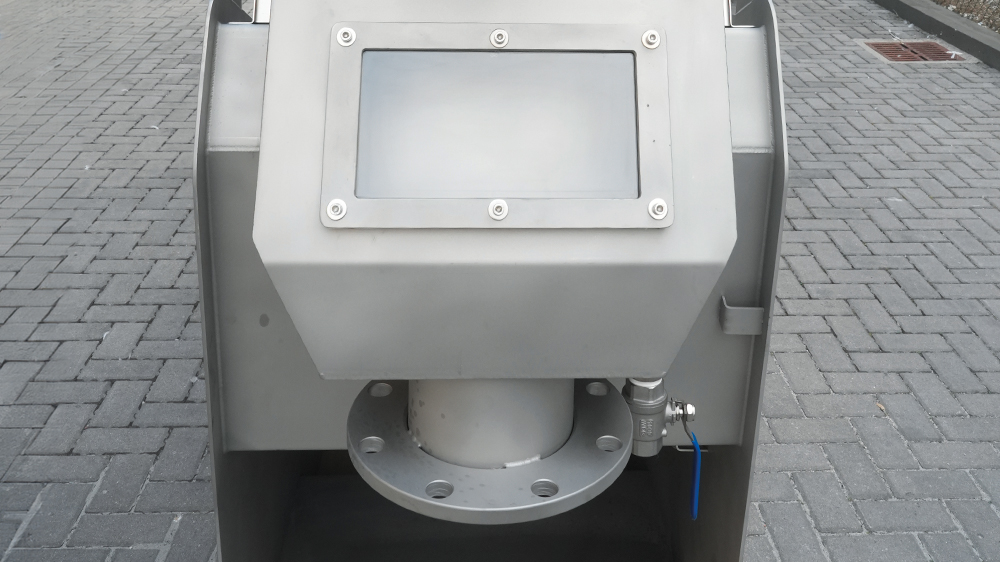

An inspection hatch allows the degree of flocculation and the consistency of the flocs formed inside the reactor to be observed directly. This makes it possible to visually check the process during the sludge-conditioning stage.

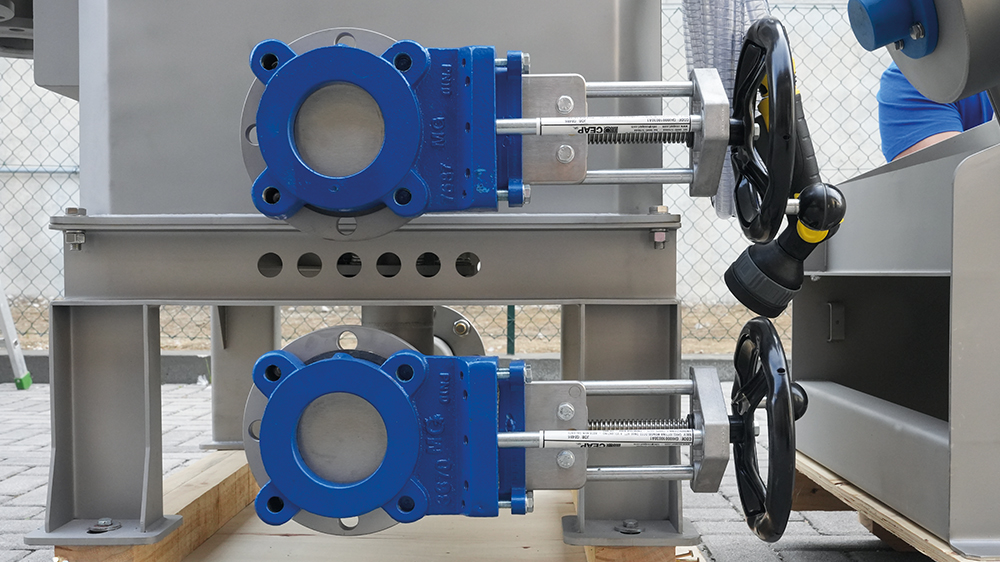

The thickened sludge outlet is flanged to facilitate connection to an optional thickened sludge transfer pump. The outlet is fitted with a sight glass for visual monitoring of the flow and process, as well as a pressure transducer to ensure correct operation of the thickened sludge transfer system.
APPLICATIONS
ZEUS Dynamic Thickener is designed for sludge handling and thickening as part of treatment processes, adapting to different sludge characteristics and specific plant requirements. It is particularly suitable for municipal, agri-food, food and beverage, and industrial sectors, where optimising sludge concentration helps improve subsequent treatment stages and reduce the volumes to be handled.
MAIN TECHNICAL FEATURES
| Serie | Modello | Portata (mc/h) | Dimensioni (mm) | Peso (kg) | Portata acqua lavaggio (lt/h) a 2 bar | Potenza totale installata (kW) | |||
|---|---|---|---|---|---|---|---|---|---|
| concentraz. 0,8% | Lunghezza | Larghezza | Altezza | A vuoto | In esercizio | ||||
| SMALL | ZEUS 402ID | ≈8 mc/h | 2465 | 585 | 1535 | 400 | 650 | 50 | 0,92 |
| 600 | ZEUS 602ID | ≈25 mc/h | 3330 | 725 | 1890 | 860 | 1250 | 50 | 1,65 |
| ZEUS 604ID | ≈50 mc/h | 3530 | 1115 | 1875 | 1300 | 1900 | 100 | 2,75 | |
| 700 | ZEUS 704ID | ≈80 mc/h | 3920 | 1375 | 2180 | 3100 | 4700 | 140 | 5,5 |
| ZEUS 706ID | ≈120 mc/h | 4120 | 1915 | 2180 | 3920 | 5430 | 210 | 8,1 | |
| ZEUS 708ID | ≈160 mc/h | 4685 | 2755 | 2180 | 5700 | 7710 | 280 | 11 | |
| 800 | ZEUS 804ID | ≈100 mc/h | 3920 | 1375 | 2180 | 3300 | 4900 | 160 | 5,5 |
| ZEUS 806ID | ≈150 mc/h | 4120 | 1915 | 2180 | 4350 | 6750 | 240 | 8,1 | |
| ZEUS 808ID | ≈200 mc/h | 4685 | 2755 | 2180 | 6100 | 8960 | 320 | 11 | |
