Easy Press ZEUS

Mechanical sludge dewatering unit

Easy Press ZEUS is a monoblock package for thickening and/or dewatering sludge in civil and industrial wastewater treatment plants. At maximum operating speed it has low operating and maintenance costs that more than compensate for the lower costs of sludge transport and disposal, generating real savings in economic terms and a tangible advantage for the environment.

It is possible to achieve sludge thickening up to 15% DS or sludge dewatering over 20% DS, this depending on the chemical, physical and biological characteristics of the sludge to be treated in each individual plant.

Disegno Marchio

The ZEUS Easy Press offers a valid solution for both sludge thickening and dewatering in small and medium-sized sewage treatment plants, both civil and industrial. Low operating and maintenance costs and a compact design have been the goals of a series of machines. It is possible to obtain a sludge thickening up to 15% DS or a sludge dehydration up to 20%±5% DS, this depending on the chemical, physical and biological characteristics of the sludge to be treated in each single plant.

262 ÷ 808

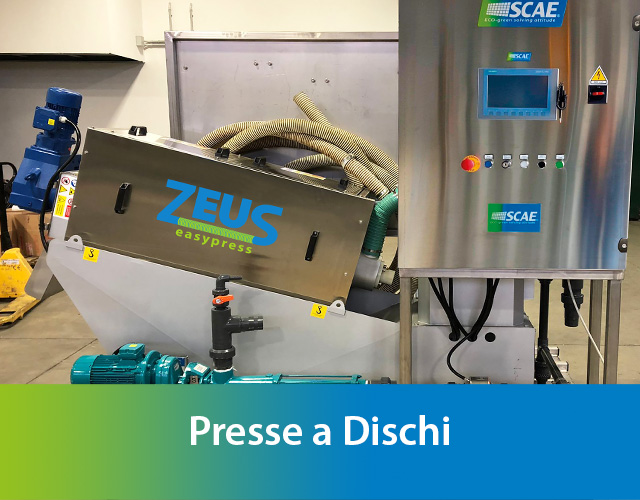

Easy Press ZEUS is equipped with all the equipment to complete the dehydration section, such as the single screw electric pumps for sludge feeding and polyelectrolyte dosing, the station for preparing the polyelectrolyte solution and any screw for conveying the dehydrated sludge. The result is a complete monobloc treatment package.

Illustrazione

Description:

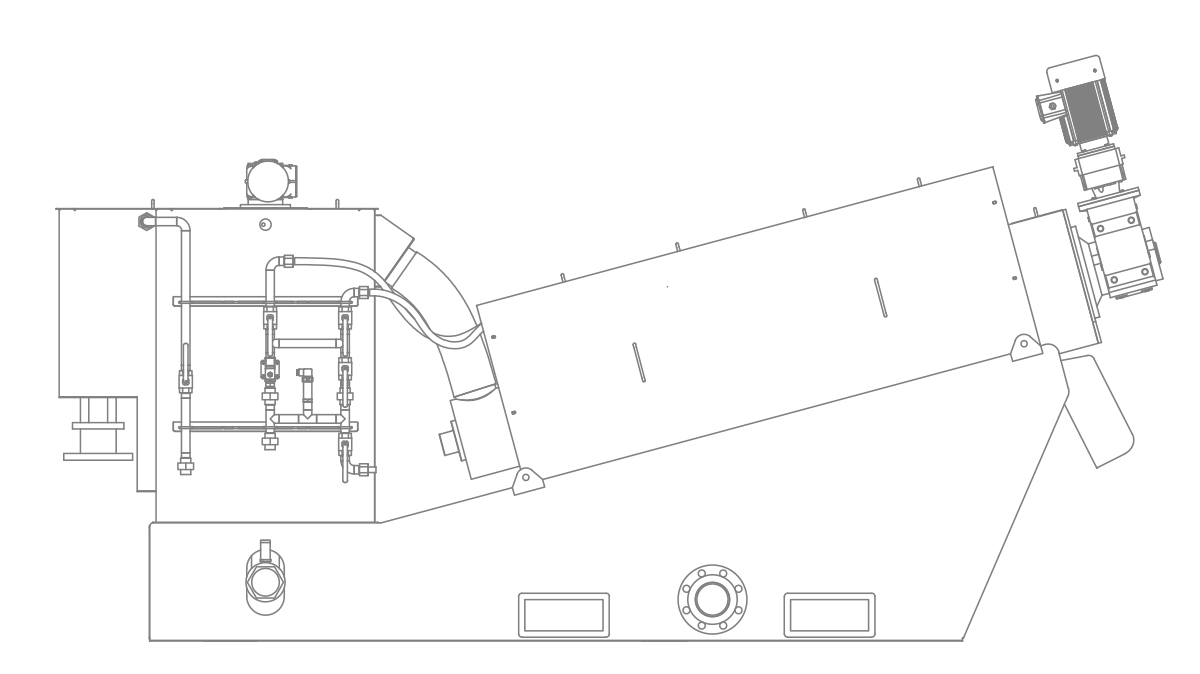

The main part of the Easy Press ZEUS is formed, depending on the model, by one or more screw conveyors with a shaft, which runs inside a sort of duct made by an alternation of fixed and mobile disks. The disks are entirely made of AISI 304 or 316L stainless steel. The sludge, after being conditioned in the special flocculation tank, enters from the loading mouth(s) located in the initial part of each single pressing screw, is transported by the spiral movement of the screw and then, following the advancement, progressively dehydrated and compacted. The water is separated from the sludge through the space created between the mobile discs; the relative movement between the discs favours the continuous self-cleaning of the spaces between them and prevents clogging and blockage of the machine. Thanks to this system, the machine requires less washing water than other types of equipment on the market dedicated to sludge dehydration.

Illustrazione

Pros:

  • Self-cleaning, requires very small amounts of wash water;
  • Compact shape and small overall dimensions;
  • Continuous and automatic operation 24/24 hours with minimum request of operator presence;
  • Reduced and simple maintenance and cleaning;
  • Absence of rotors that require periodic maintenance;
  • Low power consumption and reduced energy consumption compared to other traditional systems;
  • High reliability and durability;
  • Absence of clogging even with fibrous material.
Illustrazione

Applications:

  • urban sewage;
  • food and beverage industry;
  • dairy industry;
  • slaughterhouses and meat processing;
  • textile industry and laundries;
  • pulp and paper industry;
  • chemical and pharmaceutical industry;
  • oil and hydrocarbons industry;
  • leather and hide processing;
  • animal breeding;
  • biogas plants from agricultural matrices and industrial waste;
  • mining and metallurgical industry.
Illustrazione

Main technical features:

Model Augers Installed power Dimensions (mm) Weight (kg)
kW Length Width Height dry running
ZEUS 262 1 0,3 1870 730 1170 250 395
ZEUS 264 2 0,4 2000 960 1230 350 595
ZEUS 402 1 0,45 2550 880 1390 350 600
ZEUS 404 2 0,7 2700 1410 1390 650 1000
ZEUS 406 3 0,95 2900 1650 1390 1000 1500
ZEUS 602 1 1,3 3310 1000 1700 750 1275
ZEUS 604 2 2,05 3500 1300 1700 1340 2225
ZEUS 606 3 3 3700 1650 1700 1750 3030
ZEUS 608 4 3,75 4000 2100 1750 2150 4150
ZEUS 702 1 1,85 3610 1100 1850 1150 1915
ZEUS 704 2 2,95 3820 1490 1850 1950 3205
ZEUS 706 3 4,4 4120 1770 1850 2800 4830
ZEUS 708 4 5,9 4320 2290 1850 3700 6515
ZEUS 802 1 3 4550 1180 2250 2050 3425
ZEUS 804 2 4,5 4870 1710 2250 3850 6645
ZEUS 806 3 7,5 4790 2600 2250 5400 9710
ZEUS 808 4 9 4840 3150 2250 7000 12960
Illustrazione

Powers and capacities:

Model Primary Sludge - Active Sludge - Chemical Precipitation Sludge Flotation Mud Primary + active mixed sludge - Aerobically digested sludge
Sludge concentration (ST) 0,20% 1,00% 2,00% 5,00% 3,00%
ZEUS 262 4 kgSS/h 6 kgSS/h 10 kgSS/h 20 kgSS/h 26 kgSS/h
2,0 m3/h 0,6 m3/h 0,5 m3/h 0,4 m3/h 0,87 m3/h
ZEUS 264 8 kgSS/h 12 kgSS/h 20 kgSS/h 40 kgSS/h 52 kgSS/h
4,0 m3/h 1,2 m3/h 1,0 m3/h 0,8 m3/h 1,75 m3/h
ZEUS 402 8 kgSS/h 12 kgSS/h 20 kgSS/h 40 kgSS/h 52 kgSS/h
4,0 m3/h 1,2 m3/h 1,0 m3/h 0,8 m3/h 1,75 m3/h
ZEUS 404 16 kgSS/h 24 kgSS/h 40 kgSS/h 80 kgSS/h 104 kgSS/h
8,0 m3/h 2,4 m3/h 2,0 m3/h 1,6 m3/h 3,5 m3/h
ZEUS 406 24 kgSS/h 36 kgSS/h 60 kgSS/h 120 kgSS/h 156 kgSS/h
12,0 m3/h 3,6 m3/h 3,0 m3/h 2,4 m3/h 5,2 m3/h
ZEUS 602 20 kgSS/h 30 kgSS/h 50 kgSS/h 100 kgSS/h 130 kgSS/h
10,0 m3/h 3,0 m3/h 2,5 m3/h 2,0 m3/h 4,35 m3/h
ZEUS 604 40 kgSS/h 60 kgSS/h 100 kgSS/h 200 kgSS/h 260 kgSS/h
20,0 m3/h 6,0 m3/h 5,0 m3/h 4,0 m3/h 8,7 m3/h
ZEUS 606 60 kgSS/h 90 kgSS/h 150 kgSS/h 300 kgSS/h 390 kgSS/h
30,0 m3/h 9,0 m3/h 7,5 m3/h 6,0 m3/h 13 m3/h
ZEUS 608 80 kgSS/h 120 kgSS/h 200 kgSS/h 400 kgSS/h 520 kgSS/h
40 m3/h 12 m3/h 10 m3/h 8,0 m3/h 17 m3/h
ZEUS 702 40 kgSS/h 60 kgSS/h 100 kgSS/h 200 kgSS/h 260 kgSS/h
20,0 m3/h 6,0 m3/h 5,0 m3/h 4,0 m3/h 8,7 m3/h
ZEUS 704 80 kgSS/h 120 kgSS/h 200 kgSS/h 400 kgSS/h 520 kgSS/h
40 m3/h 12 m3/h 10 m3/h 8,0 m3/h 17 m3/h
ZEUS 706 120 kgSS/h 180 kgSS/h 300 kgSS/h 600 kgSS/h 780 kgSS/h
60 m3/h 18 m3/h 15 m3/h 12 m3/h 26 m3/h
ZEUS 708 160 kgSS/h 240 kgSS/h 400 kgSS/h 800 kgSS/h 1.040 kgSS/h
80 m3/h 24 m3/h 20 m3/h 18 m3/h 35 m3/h
ZEUS 802 68 kgSS/h 100 kgSS/h 130 kgSS/h 260 kgSS/h 330 kgSS/h
34 m3/h 10 m3/h 6,5 m3/h 5,2 m3/h 11 m3/h
ZEUS 804 136 kgSS/h 200 kgSS/h 260 kgSS/h 520 kgSS/h 660 kgSS/h
68 m3/h 20 m3/h 13 m3/h 10,4 m3/h 22 m3/h
ZEUS 806 200 kgSS/h 300 kgSS/h 390 kgSS/h 780 kgSS/h 990 kgSS/h
100 m3/h 130 m3/h 19,5 m3/h 15,6 m3/h 33 m3/h
ZEUS 808 266 kgSS/h 400 kgSS/h 520 kgSS/h 1.040 kgSS/h 1.320 kgSS/h
133 m3/h 40 m3/h 26 m3/h 20,8 m3/h 44 m3/h
